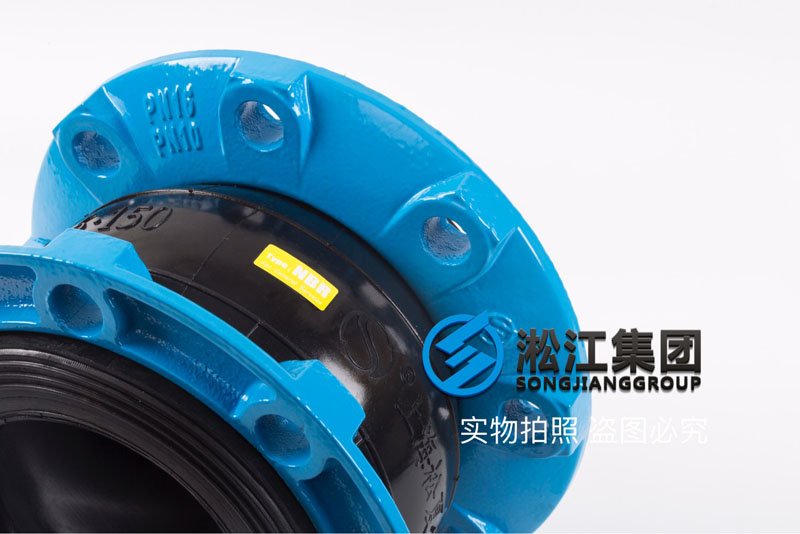

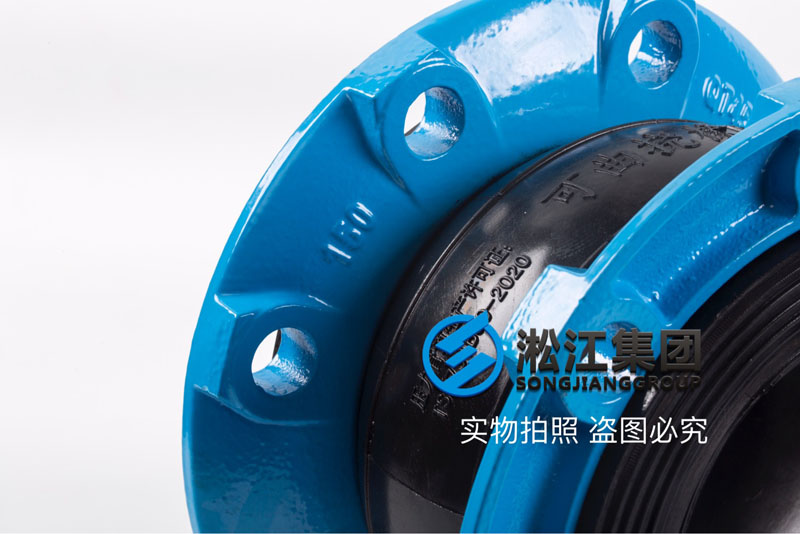

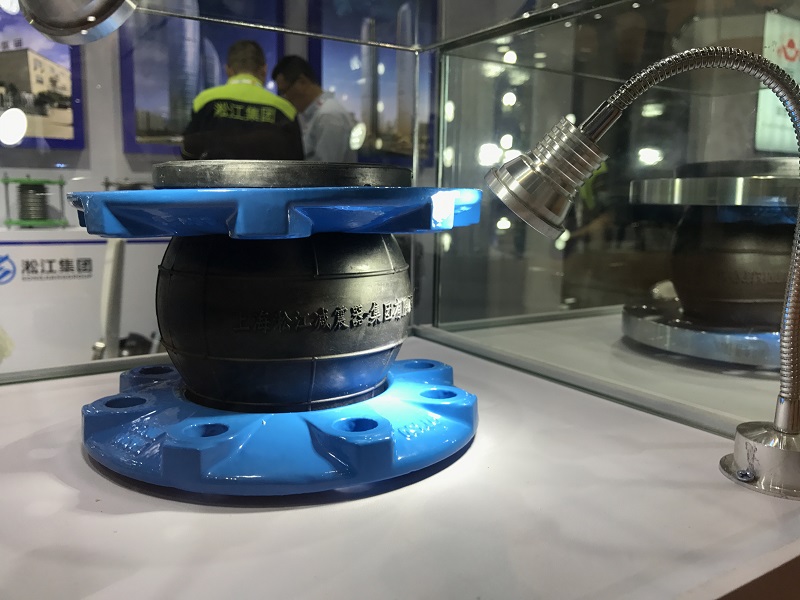

【丁腈橡膠】球墨法蘭耐油橡膠接頭“電液集成系統”
"Electro-hydraulic Integrated System" for Oil-Resistant Rubber Joints of Ductile Graphite Flanges
上海淞江減震器集團有限公司官方網站為您介紹：【丁腈橡膠】球墨法蘭耐油橡膠接頭“電液集成系統”信息，淞江集團為電液集成系統生產一種耐油橡膠接頭，主要采用丁腈橡膠生產，代號為N41，其中含量達到50%左右，有含量檢測報告，也支持各種第三方檢測。
The official website of Shanghai Songjiang Shock Absorber Group Co., Ltd. introduces to you: [NBR] information of "electro-hydraulic integrated system" for spheroidal graphite flange oil-resistant rubber joint. Songjiang Group produces an oil-resistant rubber joint for the electro-hydraulic integrated system, mainly using NBR, code N41, which contains about 50% of the total. Quantitative testing reports also support a variety of third-party testing.
說明：
我公司耐高溫橡膠接頭閥體上有材質標識區，箭頭指向NBR，如果箭頭沒有指向NBR，那么該產品不是丁腈橡膠接頭，請勿在耐油環境使用，避免帶來安全隱患，可以
聯系我們。
Explain:
There is a material identification area on the valve body of our company's high-temperature resistant rubber joint, and the arrow points to NBR. If the arrow does not point to NBR, the product is not NBR joint. Please do not use it in acid-base and high-temperature resistant environment to avoid potential safety hazards. You can contact us.
·
名稱：耐油橡膠接頭
型號：KXT-NBR-150
壓力：1.6Mpa
長度：180mm
軸向壓縮：18mm
軸向拉伸：10mm
橫向位移：12mm
偏向角度：15°
橡膠材質：丁腈橡膠N41
法蘭材質：球墨QT450（另外還有碳鋼、不銹鋼、PVC材質可選擇）
法蘭標準：GB/T 9119-2000 （除此法蘭標準之外，我廠還可以配套更多法蘭標準，如需了解其他法蘭標準請點擊：
橡膠接頭法蘭標準）
使用優點：減震、降噪、保護液壓設備的長期使用，降低維修成本。
質保期限：12個月
生產廠家：上海淞江減震器集團有限公司
資質證書：合格證、質保書、檢驗報告、國家型式試驗報告、第三方性能檢測報告、含量成分檢測報告。
Name: oil resistant rubber joint
Model: KXT-NBR-150
Caliber: DN150
Pressure: 1.6Mpa
Length: 180mm
Axial compression: 18mm
Axial tension: 10mm
Lateral displacement: 12mm
Deviation angle: 15 degrees.
Rubber material: nitrile rubber N41
Flange material: QT450
Flange standard: GB/T 9119-2000
Applicable media: hydraulic oil, lubricating oil, emulsion; (Note: aviation kerosene, diesel, gasoline, can not be used.)
Advantages: shock absorption, noise reduction, protection of hydraulic equipment for long-term use, reduce maintenance costs.
Warranty period: 12 months.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Content Component Test Report.
The following is the introduction of Songjiang group
