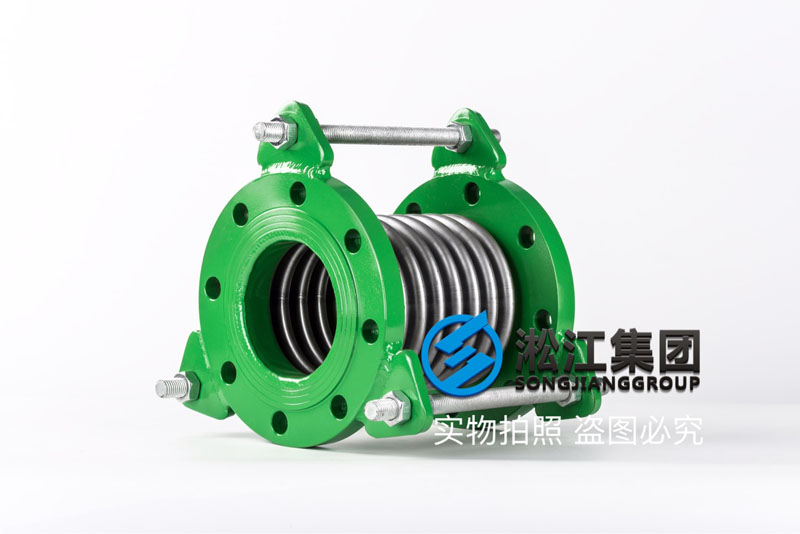

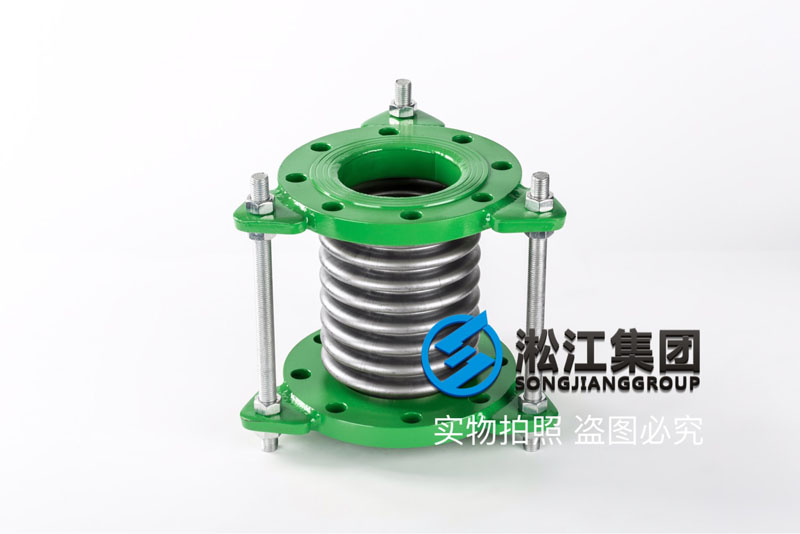

DN100國標法蘭波紋補償器

服務內容：DN100國標法蘭波紋補償器

簡介：DN100國標法蘭波紋補償器 GB flanged corrugated compensator 上海淞江減震器集團有限公司官方網站為您介紹：DN100國標法蘭波紋補償器信息，淞江集團生產的波紋補償器產品全部采用國標型法蘭生產，這里的國......

DN100國標法蘭波紋補償器
GB flanged corrugated compensator

上海淞江減震器集團有限公司官方網站為您介紹：DN100國標法蘭波紋補償器信息，淞江集團生產的波紋補償器產品全部采用國標型法蘭生產，這里的國標不單單指的是法蘭鏈接尺寸問題，而且還包括外徑和厚度，外徑和厚度達到了國標，那么就屬于國標法蘭了嗎？并不是這么簡單，還要看法蘭材質，淞江集團波紋補償器法蘭全部采用山西鍛打法蘭，為什么要說是山西鍛打法蘭呢？業內人士都知道，在國內做鍛打碳鋼法蘭做的.好的就是山西了，所以，正宗的國標法蘭就是要法蘭材質達標，還要各項參數達標才能算是國標法蘭。
Shanghai Songjiang absorber group limited official website for you to introduce DN100 standard flange compensator, corrugated compensator products Songjiang Group production of all GB flange production, here not only refers to the standard flange link the size, but also the diameter and thickness, diameter and thickness reached the national standard, so it belongs to the standard flange? It's not so simple. It depends on the flange material. The flange compensator flange of Songjiang group is all made by Shanxi forging flange. Why do we call it Shanxi forging flange? People in the industry know that the best way to do forged carbon steel flanges in Shanxi is in China, so the authentic GB flanges should be flanges, and all the parameters should be qualified to be the GB flange.

名稱：DN100國標法蘭波紋補償器

口徑：DN100mm

壓力：PN16

波數：8波

厚度：0.8mm

長度：200mm

伸縮量：40mm

波紋材質：不銹鋼304

法蘭材質：碳鋼（鍛打）

適用于：管道管線中

作用：吸收管道熱脹冷縮的軸向位移

缺點：請?jiān)诠艿肋M(jìn)水口加裝有效去除氯離子裝置（氯離子含量不超過25mg/L），避免水氯離子含量超標，產生針孔腐蝕；

取代者：橡膠接頭是用在設備進出口的，可以補償軸向和橫向位移，減震效果是最好的。并且不受管道內部介質的腐蝕。

品牌：淞江集團

制造商：上海淞江減震器集團有限公司

Name: DN100 stainless steel metal expansion joint

Caliber: DN100mm

Pressure: PN16

Wave number: 8 wave

Thickness: 0.8mm

Length: 200mm

Scalability: 40mm

Corrugated material: stainless steel 304

Flange material: carbon steel (forging)

Brand: Songjiang group

Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

了解該產品參數信息請點擊：【樣冊P93】BGF型不銹鋼波紋補償器

材料說明：

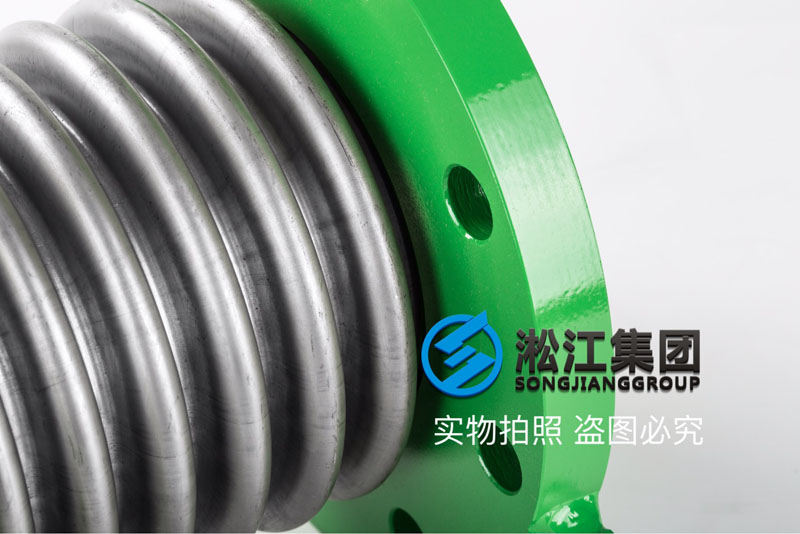

波紋管體：為了更持久的使用壽命，全部采用不銹鋼304正材生產，支持各種光譜儀檢測，假一賠十，厚度全部厚于同行業標準。

連接法蘭：法蘭全部采用山西正宗鍛打材質，無論是強度還是密封性都是很好的材質，不要拿市面上的鑄鋼、鋼板鋼法蘭來對比，沒有任何可比性。

焊材：焊材全部采高于母材等級標準，讓焊接點更加牢固。

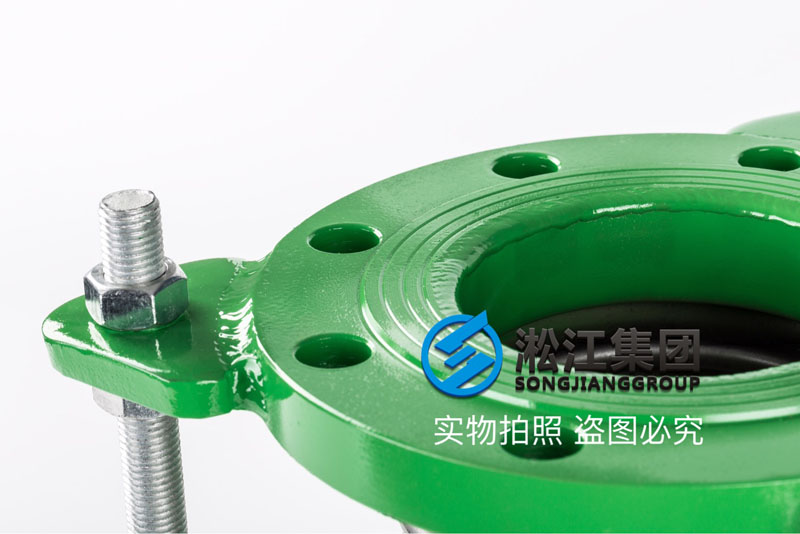

限位耳板：耳板全部采用加大加厚尺寸生產，每個型號都可以與同行業同型號去一對一的對比，這就是所謂的沒有對比就沒有傷害。

限位螺桿：螺桿全部采用8.8級高強度鍍鋅，為100%確保產品的綜合強度，不要與市面的4.8級來對比，無意義。

生產標準：淞江集團通過德國萊茵TUV認證，并且嚴格按照壓力管道生產要求進行生產，讓出廠的每一個波紋補償器產品達到100%的合格。

DN100國標法蘭波紋補償器采用奧氏體不銹鋼材料或按用戶要求的材料制造，具有優良的柔軟性，耐蝕性，耐高溫性，耐高壓性，在管路中可補償軸向位移，用以溫度補償和吸收振動、降低噪聲、改變介質輸送方向、消除管道間或管道與設備間的軸向位移等，國標法蘭波紋補償器對有軸向位移的管線尤為適用。

DN100國標法蘭波紋補償器屬于一種補償元件。利用其工作主體波紋管的有效伸縮變形，以吸收管線、導管、容器等由熱脹冷縮等原因而產生的軸向位移，或補償管線、導管、容器等的軸向位移。也可用于降噪減振。

Material description:

Bellows body: for longer, all stainless steel 304 material is used to support all kinds of spectrometers, and the fake one is ten, the thickness is all thicker than the same industry standard.

Connecting flange: all flanges are made of orthodox forging material in Shanxi, both strength and sealing are the best materials. Do not compare the cast steel and steel plate flange on the market with no comparability.

Welding consumables: welding materials are higher than the level of the parent material standard, let the welding point more firmly.

Limit ear plate: ear boards are all made by increasing thickening dimensions, each model can be compared with the same industry's one type to one to one, which is called no contrast, no harm.

Limit screw: the screw is all 8.8 - grade high - strength zinc plating, which is? to ensure the comprehensive strength of the product, not to compare with the market level 4.8.

Production standard: Songjiang group passes the national pressure pipe production license requirement, and is strictly controlled according to the production requirement of TS pressure pipe, so that every corrugated compensator product of factory reaches? qualified.

DN100 standard flange compensator using austenitic stainless steel material or according to user requirements for the manufacture of materials, with softness, excellent corrosion resistance, high temperature resistance, high pressure, in the pipeline can be connected to any direction, with temperature compensation and vibration absorption and reduce the noise, changing the medium conveying direction, eliminate the mechanical displacement of the pipe or pipe and between devices, especially for the flexible joint with double flange corrugated metal hose on the displacement and vibration of pump and valve etc..

The flanged ripple compensator of the DN100 national standard belongs to a compensation element. The effective expansion and deformation of bellows should be utilized to absorb the size changes caused by thermal expansion, shrinkage and other reasons, or to compensate for axial, lateral and angular displacement of pipelines, pipes and containers. It can also be used for noise reduction and vibration reduction.
