上海淞江減震器集團有限公司官方網站為您介紹：SHA-S-60臥式蝸殼泵側托式彈簧減震器信息，淞江集團是一家從事水泵減震器生產廠家，為風機推薦一款專用的彈簧減震器，采用低頻阻尼型設計，讓水泵大大的降低震動，非常明顯，以下是臥式蝸殼泵側托式彈簧減震器介紹。
Shanghai Songjiang absorber group limited official website for your introduction: JB-60-S fan special low frequency damping spring damper, Songjiang group is a professional engaged in the fan damper manufacturers recommend a special spring damper for fan, the low frequency damping type design, let the wind machine greatly reduced to enhance the effect of vibration, *, is very obvious, the following is fan dampers are introduced.

一、臥式蝸殼泵側托式彈簧減震器實物拍照：

SHA型低頻可調彈簧減振器特性:
1、本體材質為鋁合金。
2、特殊結構設計，可依實際需要調整高度。
3、外形輕巧堅固，安裝容易；適用于各類機械內避振裝置。
4、彈簧均經熱處理，ED放銹，烤漆或噴塑程序處理。
5、荷重撓度25mm能有效消除機械振動。

6、新款SHA型減震器外殼上設計了淞江集團LOGO作為防偽標識，這樣大大增加了防偽成本。
SHA型低頻可調彈簧減振器具有安裝方便等特點，減振器上下端各有螺絲及螺絲孔，彈簧上端有高度調節螺母，可根據安裝需要自由調整高度減振器兩端有側向橡膠阻尼，加大了垂向的阻尼系數，提高了縱向和橫向的剛度，確保設備能更安全的運行。

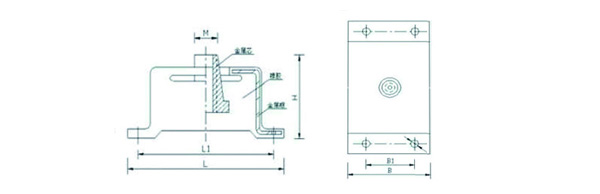

二、臥式蝸殼泵側托式彈簧減震器結構圖：

三、臥式蝸殼泵側托式彈簧減震器發貨現場：

四、臥式蝸殼泵側托式彈簧減震器安裝現場：

使用現場鏈接：EBARA臥式雙吸蝸殼泵減震器

安裝設計解決方案鏈接：【樣冊P71】水泵減振器安裝形式之側面托浮式減振方式

以上風機專用低頻阻尼彈簧減震器信息來源于上海淞江減震器集團有限公司官方網站減震器產品中心，如需了解更多請點擊：風機彈簧減震器

相關鏈接：SHA型可調阻尼彈簧減震器安裝說明

上海淞江減震器集團有限公司官方網站為您介紹：：SHM-1-200臥式離心泵側面托浮式彈簧減震器信息，淞江集團為臥式離心泵側面托浮式減震方式推薦一款專用的低頻阻尼彈簧減震器，該產品可以將臥式離心泵的震動和噪音吸收效果好，為人們帶來了安靜的生活環境。
Shanghai Songjiang absorber group limited official website introduces for you: ZTF-1-200 low frequency transformer special spring shock absorber, Songjiang group for the shock absorber damping spring low frequency transformer to recommend a special product can be changed, the transformer vibration and noise absorption of , bring a quiet living environment for people.

上海淞江減震器集團有限公司官方網站為您介紹：LB型水泵慣性基座信息，淞江集團為水泵配套專用的慣性基座及彈簧減震器產品，該產品具有很好的減震效果和降噪效果，是眾多高標準要求的首選產品。

1、LB型水泵慣性基座，具有良好的吸振及隔音效果，效率可達95%以上。
2、LB型水泵慣性基座，具有結構堅固及重量輕的特性，易于按裝，且無一般傳統式基座的 水泥灌漿工作，節省工時。
3、LB型水泵慣性基座，設計有水平調整螺栓，泵浦安裝后只須調整水平螺栓，不需要調整 千斤頂或移動減振器調整。
4、具有地震反摯功能設計。
1, LB type water pump and the base, with good suction and sound insulation effect, more than 95% efficiency.
2, LB type water pump and the base of the earthquake, has the characteristics of strong structure and light
weight, easy to install, and no general traditional foundation of cement grouting work, save time.
3, LB type pump shockproof pedestal, design a horizontal adjusting bolt, pump according to the installed only
after the level adjusting bolt, does not need to be to adjust jack or moving shock absorber adjustment.
4, Has the anti earthquake function design.

相關鏈接：STA型內嵌式水泵彈簧減振器

安裝示意圖：【樣冊P72】水泵減振器安裝形式之內嵌式減振方式

相關鏈接：彈簧減震器

上海淞江減震器集團有限公司官方網站為您介紹：STA型內嵌式水泵彈簧減振器信息，淞江集團為眾多星級酒店泵房減震降噪推薦一款阻尼彈簧減震器，該產品具有良好的減震效果和降噪效果，從而保證旅客良好的住宿環境。
Shanghai Songjiang absorber group limited official website introduces you to the STA Hotel Group: pump spring shock absorber, Songjiang group for many star hotels pump noise damping recommend a damping spring shock absorber, the product has good damping effect and the effect of noise, thus ensuring good passenger accommodation.

安裝形式查看：【樣冊P72】水泵減振器安裝形式之內嵌式減振方式

產品介紹： Product introduction:
1、彈簧采用低頻率值設計，并經噴塑處理，耐候性佳，防振效果好。
2、彈簧底座采用丁腈膠制作，彈簧頂蓋由橡膠包裹，可延長使用壽命。
3、安裝簡單，可按實際需要調節高度及水平。
4、可配合臺座設計，可使用于各類機械設備。
5、適用于各類水泵、風機、空調箱、管道等。
1, spring with low frequency value design, and after spray
treatment, good weatherability, good shockproof effect.
2, the spring base is made of fine rubber, the spring cover
is made of rubber, which can prolong the service life.
3, the installation is simple, according to the actual need
to adjust the height and level.
4, can be matched with the pedestal design can be used in
various types of machinery and equipment.
5, applicable to all kinds of pumps, fans, air conditioning,
pipeline, etc..

以上STA型內嵌式水泵彈簧減振器“節省空間”信息來源于上海淞江減震器集團有限公司官方網站產品中心減震器系列，淞江集團從事泵房減震器領域30多年，為眾多客戶提供了幫助，了解更多請登錄官方網站查詢。

相關鏈接：水泵減震器

上海淞江減震器集團有限公司官方網站為您介紹：SCM型循環泵彈簧減震器信息，淞江集團為眾多暖通系統循環水泵推薦一款專用的彈簧減震器產品，該產品具有良好的減震和降噪效果。
The official website of Shanghai Songjiang shock absorber Group Co., Ltd. introduces you:? circulating water pump spring shock absorber information, Songjiang group recommends a special spring shock absorber product for many HVAC circulating pumps, this product has good shock absorption and noise reduction effect.

3、對工作環境適應性強。對積中隔振、消除隔振、沖擊振動和固體傳聲的隔離均有明顯的效果。是隔離振動降低噪聲、治理振動公害、保護環境的理想減振器。

water pump spring shock absorber performance characteristics:

1, the shape shell is made of high quality steel, and the shock absorber will never break in transportation and operation. It will enhance the of shock absorber.

2, the load range is wide, convenient for users to choose, natural frequency is low, vibration isolation effect is good, and compact structure, small size, easy installation and replacement, safe and reliable operation, long.

3. It has strong adaptability to the working environment and can work normally at . The active vibration isolation and passive isolation, shock and vibration and solid isolation has obvious effect. It is an ideal shock absorber for isolating vibration, reducing noise, harnessing vibration public hazards and protecting environment.

安裝示意圖查看：【樣冊P70】水泵減振器安裝形式之常規減振方式

SCM型循環泵彈簧減震器共有三種安裝形式，SCM型循環泵彈簧減震器上下座面有防滑橡膠墊，對于干擾力較小的動力設備，可直接將SCM型循環泵彈簧減震器置放于設備的機座下，勿需固定，擾力較大的設備與減振器固定上安裝孔固定，減振器底部安裝孔與地面（支架）固定即可。
SCM series damper consists of three kinds of installation form, SCM type damping spring damper on the seat surface is non slip rubber pad for power equipment disturbance force is small, can be directly SCM damper placed on the equipment base, do not need to be fixed, large exciting force equipment and the shock absorber is fixed on the the mounting hole is fixed, the bottom of the shock absorber mounting hole and the ground (bracket) can be fixed.

以上SCM型循環泵彈簧減震器信息來源于上海淞江減震器集團有限公司官方網站產品中心減震器系列，淞江集團從事泵房減震器領域30多年，服務了很多國家級重要項目，了解更多請登錄官方網站查詢。
The above SCM circulating pump spring damper on information from Shanghai Songjiang absorber group limited official website product center shock absorber series, Songjiang group engaged in the field of pump shock absorber for 30 years, has been occupying the leading position in the field of domestic shock absorber, more please visit the official website.

相關鏈接：SCM阻尼彈簧減震器安裝說明

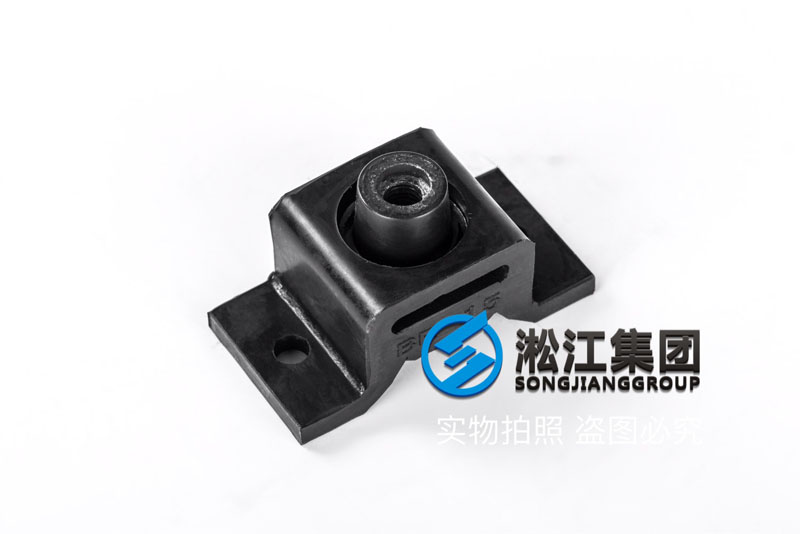

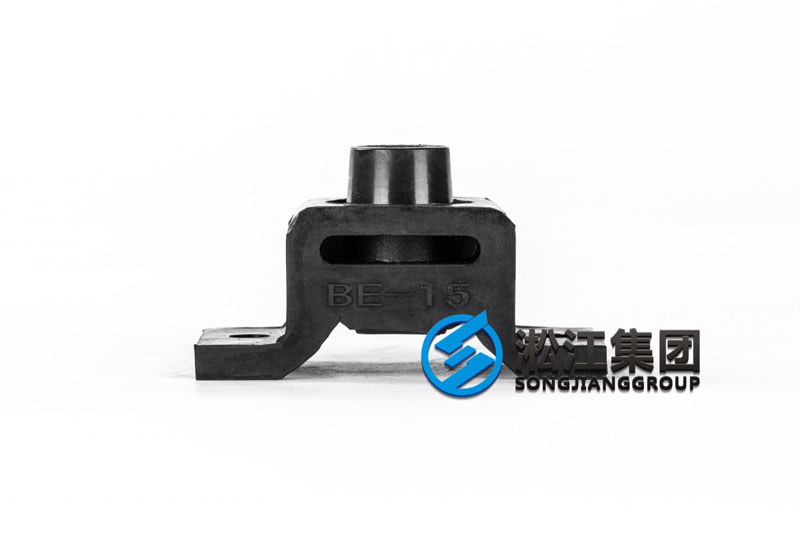

上海淞江減震器集團有限公司官方網站為您介紹：BE15液壓泵橡膠減震器信息，淞江集團為液壓泵系統推薦一款簡單實用的橡膠減震器，BE15液壓泵橡膠減震器具有良好的隔震效果，安裝后可以將液壓泵的低頻震動吸收90%，效果非常明顯，是眾多液壓系統、稀油系統的優秀減震產品。
The official website of Shanghai Songjiang shock absorber Group Co., Ltd. introduces to you the information of be15 hydraulic pump rubber shock absorber. Songjiang group recommends a simple and practical rubber shock absorber for hydraulic pump system. Be15 hydraulic pump rubber shock absorber has good shock isolation effect. After installation, it can absorb 90% of the low-frequency vibration of hydraulic pump. The effect is very obvious. It is an excellent shock absorber product for many hydraulic systems and thin oil systems.

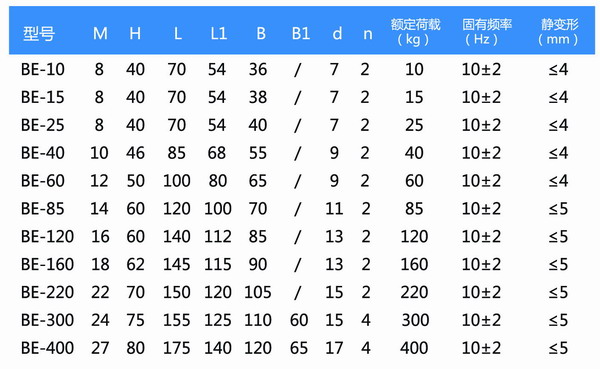

了解該產品詳細參數請查看：【樣冊P79】BE型橡膠減振器

以上BE15液壓泵橡膠減震器信息來源于上海淞江減震器集團有限公司官方網站，本頁面為淞江集團網絡部原創信息，請勿轉載，請勿修改，轉載請注明出處，謝謝合作，如需了解更多減震器產品請點擊：彈簧減震器
BE15 air conditioner rubber vibration source information in Shanghai Songjiang absorber group limited official website, the page for the Songjiang group network of the original information, please do not reprint, please do not modify, please indicate the source, thank you for your cooperation, if you want to know more shock absorber products please click on a link.

SCR型低頻橡膠減震器在規定載荷范圍內固有頻率為5~8Hz，
阻尼比≥0.07，變形上下偏差在20%以內，適用于轉速600轉/分的水泵、風機、壓縮機的減震，尤其適用于船舶設備的減振，適用于：耐油、耐海水和日照，溫度：-15~+60℃；

SCR type low-frequency rubber shock absorber has a natural frequency of 5~8Hz within the specified load range, a damping
ratio≥0.07, and a deformation up and down deviation within 20%. It is suitable for damping water pumps, fans, and compressors with a speed of 600 rpm. Especially suitable for shock absorption of ship equipment, suitable for: oil resistance, sea water resistance and sunlight resistance, temperature: -15~+60℃;

上海淞江減震器集團有限公司為循環水泵推薦一款經濟實惠的減震器產品，SCR型低頻橡膠減震器，該款減震器主要優點就是成本低，比彈簧減震器的性價比高，但是減震效果能提升60%，是眾多工業水泵的首先。
Shanghai Songjiang absorber group limited official website for your introduction: SCR type horizontal pump rubber isolator, Songjiang group to horizontal pump recommend an affordable shock absorber products, SCR type rubber isolator, the main advantages of the shock absorber is low cost, is the spring shock absorber 1/3 however, the damping effect, can provide 60%, is the first large industrial pump.

SCR型低頻橡膠減震器是由合成橡膠和內置金屬件組成，經過硫化成圓錐體，橡膠部分受剪切力、具有較大的變形范圍和較低的固有頻率。
天然橡膠，云象牌國標1#天然橡膠，含膠量達到50%左右，具有良好的減震和降噪效果。
The JGD rubber shear vibration isolator produced by Songjiang group uses high quality natural rubber, cloud elephant brand, national standard 1# natural rubber, and its rubber content is about 50%, which has good effect of shock absorption and noise reduction.

相關鏈接：SCR型低頻橡膠減震器安裝說明
